Manufacturer: EXFLO · Product line Hydronion

Hydronion open self-supporting tank

Open, self-supporting frameless fire water tank from 5,000 to 25,000 litres. Set up in 2 minutes.

Price on request

Lead time on request

Request a quote

We supply this product on request. You will receive a proposal based on your situation.

Questions about this product?
06 19 13 32 52 or 06 33 97 00 44

What is this product for?

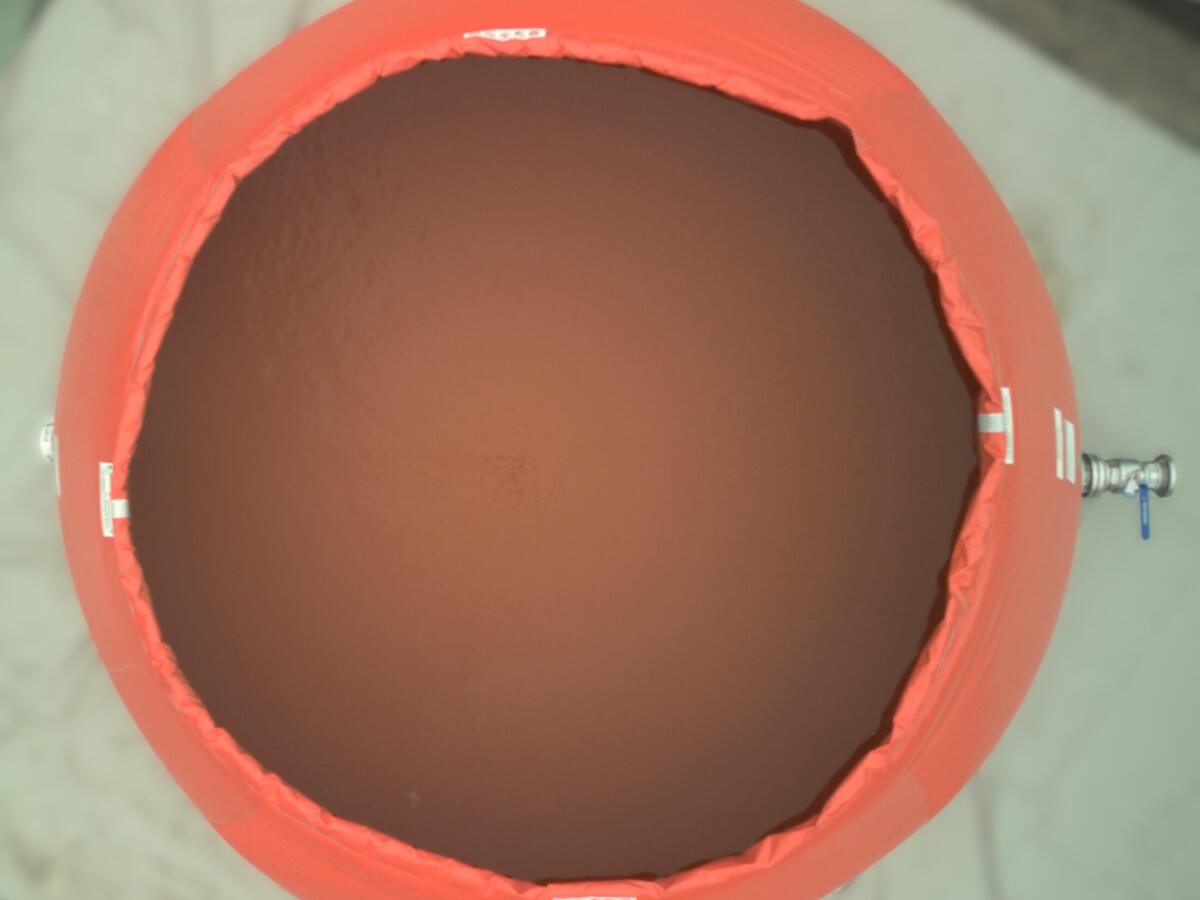

The Hydronion is an open, self-supporting tank without a frame. The open shape allows fast filling and emptying, including by several units at once. The height is suitable for filling helicopter fire buckets.

Key benefits

No frame: set up in a few minutes
Heavy fabric of 1,000 g/m²
2 DN100 connections with Storz 110 for simultaneous filling and drawing
5-year warranty on leak-tightness

Specifications

Specifications Hydronion open self-supporting tank
Dimensions	From 2.90 × 2.45 × 1.10 m (5,000 l) to 5.00 × 4.20 × 1.45 m (25,000 l), see versions
Capacity	5,000, 8,000, 10,000, 15,000 or 25,000 litres
Material	Technical fabric with polyester mesh and PVC coating, 1,000 g/m²
Weight	From 30 kg (5,000 l) to 79.8 kg (25,000 l), without cover
Connections	2 × flanged aluminium connection DN100 (4") with Storz 110 coupling and cap (without valves)
Temperature range	Contact us for current specifications
Chemical resistance	Contact us for current specifications
Warranty	5 years on leak-tightness (manufacturer's warranty)
Certification	CNBOP approval certificate no. 5753/2025 (Poland) Foreign certificate or test report, not a Dutch approval. Check which requirements apply to your situation.
Suitable liquids	We check the suitability for your liquid

Source: product information from the manufacturer. Subject to change.

Versions

Versions Hydronion open self-supporting tank
Capacity	Max. dimensions when filled (diameter × height)	Weight (without cover)
5,000 l	2.90 × 2.45 × 1.10 m	30 kg
8,000 l	2.90 × 2.00 × 1.40 m	37 kg
10,000 l	2.90 × 2.40 × 1.35 m	39 kg
15,000 l	3.90 × 3.00 × 1.45 m	41.3 kg
25,000 l	5.00 × 4.20 × 1.45 m	79.8 kg

Standard: 2 DN100 connections with Storz 110, handles, reflective elements, protective mat, cover, repair kit, collar with hydrophobic foam and float under the suction line.
