Manufacturer: EXFLO · Product line Waterbase F

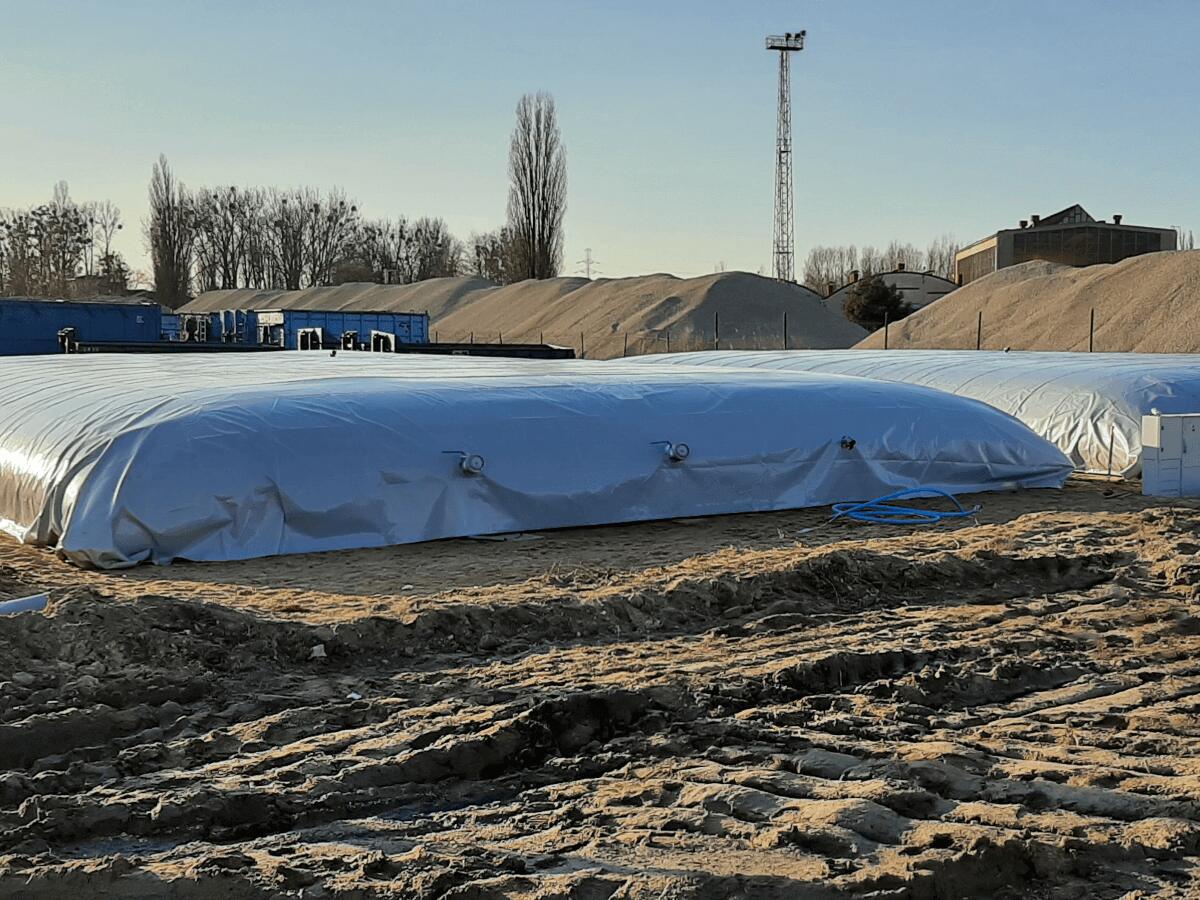

Waterbase F fire water tank

Flexible fire water tank from 50 to 300 m³, also suitable for use in winter.

Price on request

Lead time on request

Request a quote

We supply this product on request. You will receive a proposal based on your situation.

Questions about this product?
06 19 13 32 52 or 06 33 97 00 44

What is this product for?

The Waterbase F is a flexible tank for storing fire water, as an alternative to a concrete or steel reservoir. The tank is designed for year-round use, including in frost: heating mats with sensors and insulation protect the water from freezing.

You agree on the required volume and connections with the fire service or safety region. We help you choose the right tank.

Key benefits

No construction work: only a level base is needed, e.g. a compacted sand bed
Heating mats with control unit and insulation set to prevent freezing
Can be connected to a booster pump installation or water level monitoring
Also available custom-made

Specifications

Specifications Waterbase F fire water tank
Dimensions	From 8.78 × 7.45 m (50 m³) to 20.50 × 11.86 m (300 m³), see versions
Capacity	50 to 300 m³
Material	Multi-layer technical fabric with internal polyester reinforcement, PVC with UV lacquer
Weight	Contact us for current specifications
Connections	Outlet connections with DN100 valves and Storz 110 coupling (2 pcs, with heating cables and insulation); filling connection Storz 110 (1 pc)
Temperature range	Materials remain flexible down to −30 °C
Chemical resistance	Contact us for current specifications
Warranty	2 years, extendable to 10 years with an annual authorised inspection (manufacturer's warranty)
Certification	CNBOP approval certificate no. 4983/2023 (Poland) Foreign certificate or test report, not a Dutch approval. Check which requirements apply to your situation.
Suitable liquids	We check the suitability for your liquid

Source: product information from the manufacturer. Subject to change.

Versions

Versions Waterbase F fire water tank
Dimensions (l × w)	Capacity	Heating mat power
8.78 × 7.45 m	50 m³	7.5 kW
11.72 × 9.00 m	100 m³	11.5 kW
14.70 × 9.85 m	150 m³	15.0 kW
15.25 × 11.86 m	200 m³	18.8 kW
16.87 × 11.86 m	225 m³	22.5 kW
18.85 × 11.86 m	250 m³	22.5 kW
20.50 × 11.86 m	300 m³	26.1 kW

Standard equipment: 2 DN100 outlet connections with Storz 110, Storz 110 filling connection, heating mats with control unit, insulation mats and cover with tension straps.
