Waterbase R retention and buffer tank
Flexible retention tank from 10 to 250 m³ for rainwater, industrial water, grey water and waste water.
Price on request
Manufacturer: EXFLO · Product line Waterbase W
Waterbase W waste water tank
Flexible tank from 10 to 250 m³ for waste water, sewage and dirty water.
Price on request
Request a quote
We supply this product on request. You will receive a proposal based on your situation.
What is this product for?

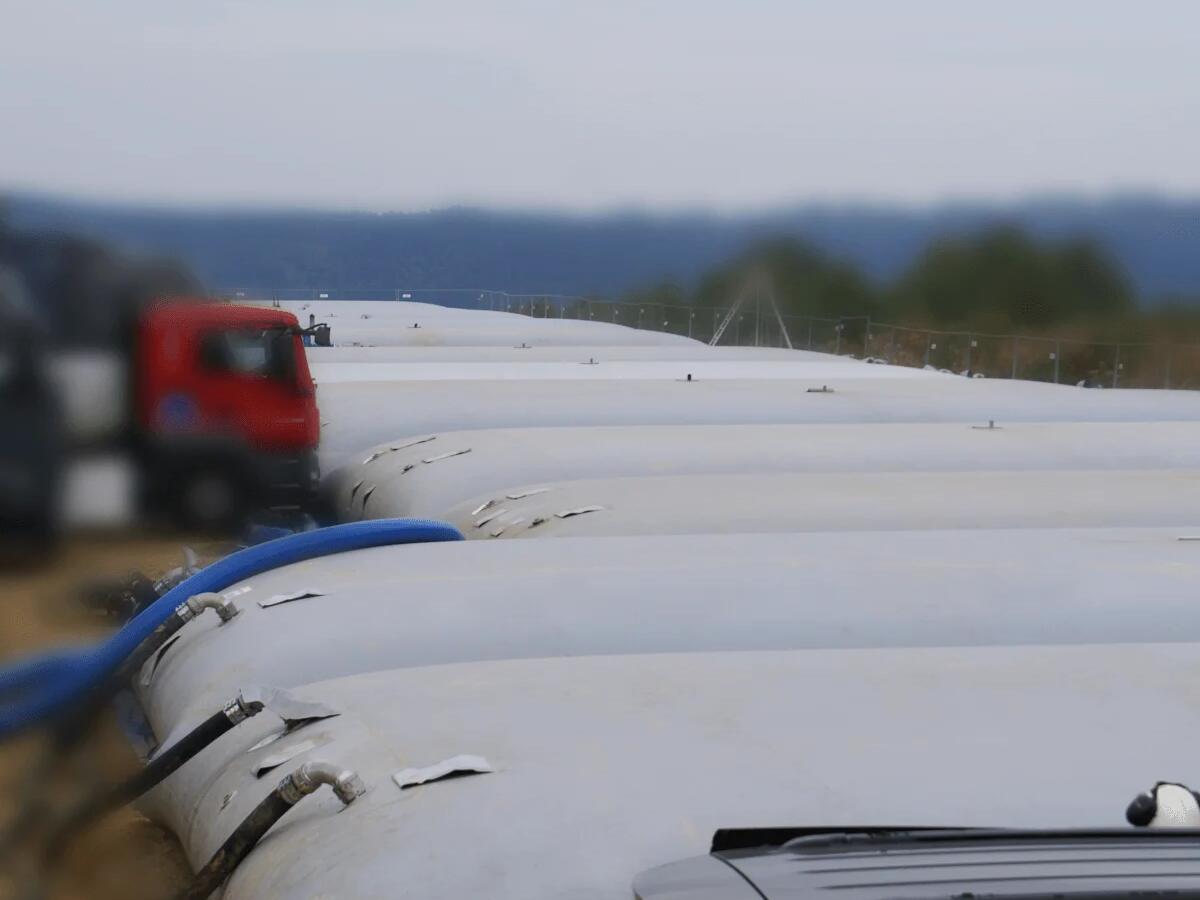

The Waterbase W is a closed, movable tank for waste water, sewage and dirty water. Suitable for temporary container bases, modular homes, events and campsites, and for collecting decontamination water.
Key benefits
- 7-year warranty on leak-tightness
- Hydrolysis-resistant fabric with UV lacquer
- No fixed anchoring required
- Set up in about 30 minutes
Specifications
| Dimensions | From 6.50 × 2.84 m (10 m³) to 18.60 × 11.74 m (250 m³), see versions |
|---|---|
| Capacity | 10 to 250 m³ |
| Material | Multi-layer technical fabric, PVC coating with polyester mesh, UV lacquer |
| Weight | From 60 kg (10 m³) to 535 kg (250 m³) |
| Connections | Fill/drain connection 2 × DN80 / 3" BSP female thread with valve; vent 2" |
| Temperature range | Contact us for current specifications |
| Chemical resistance | Liquids with a density of up to 1 kg/dm³ and a pH of 3 to 10 |
| Warranty | 7 years on leak-tightness (manufacturer's warranty) |
| Certification | Contact us for current specifications |
| Suitable liquids | Waste water and sewage, Dirty and contaminated water, Industrial water (not drinking water), Rainwater |
Source: product information from the manufacturer. Subject to change.
Versions
| Capacity | Dimensions (l × w) | Max. height | Weight |
|---|---|---|---|
| 10 m³ | 6.50 × 2.84 m | 0.85 m | 60 kg |
| 15 m³ | 5.80 × 4.45 m | 0.80 m | 78 kg |
| 25 m³ | 6.00 × 5.80 m | 1.00 m | 99 kg |
| 30 m³ | 7.20 × 5.80 m | 1.00 m | 113 kg |
| 50 m³ | 6.65 × 8.77 m | 1.20 m | 155 kg |
| 75 m³ | 8.80 × 8.77 m | 1.30 m | 210 kg |
| 100 m³ | 11.40 × 8.77 m | 1.30 m | 252 kg |
| 150 m³ | 11.95 × 11.74 m | 1.35 m | 346 kg |
| 200 m³ | 15.15 × 11.74 m | 1.40 m | 439 kg |
| 250 m³ | 18.60 × 11.74 m | 1.40 m | 535 kg |
Suitable for
- Construction sites and container bases
- Events and campsites
- Collection of decontamination water
Downloads
A full datasheet is available on request. Request the datasheet.
Always check which requirements apply to your specific situation. We are happy to think along with you.
